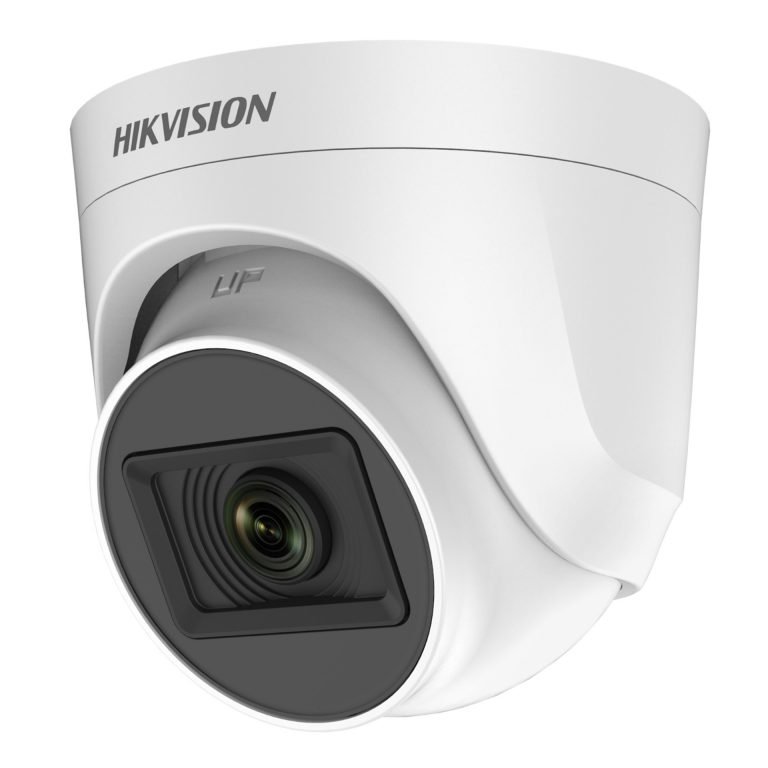

DS-2CE76U1T-ITPF

8 MP Turret Camera

•    8.29 Megapixel high-performance CMOS

•    3840 × 2160 resolution

•    2.8mm  3.6 mm, 6 mm  fixed  lens

•   4 in 1 video output (switchable TVI/AHD/CVI/CVBS)

•    EXIR 2.0, smart IR, up to 30m IR distance

•    Up the Coax(HIKVISION-C)

Compare

Specification

Camera
Image Sensor:8.29 MP high performance CMOS
Signal System:PAL/NTSC
Effective Pixels:3840 (H) × 2160 (V)
Min. Illumination:0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time:PAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s
Lens:2.8 mm, 3.6 mm, 6 mm fixed lens
Lens Mount:M16
Adjustment Range:Pan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360°
Day& Night:IR cut filter
Video Frame Rate:TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps,2MP@30fps;CVI: 8MP@12.5fps, 8MP@15fps;AHD: 5MP@20fps;CVBS: 960H P/N
Synchronization:Internal Synchronization
Lens
Horizontal Field of View:102.2°(2.8 mm), 79° (3.6 mm), 50.8° (6 mm)
Menu
D/N Mode:Auto/Color/BW (Black and White)
BLC:Support
AGC:Support
Language:English
Function:Brightness, Sharpness, DNR, Mirror, Smart IR
Interface
Video Out:1 HD analog output
General
Material:Plastic
Operating Conditions:-40 °C – 60 °C (-40 °F – 140 °F)
Humidity 90% or less (non-condensing)
Power Supply:12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera.
Power Consumption:Max. 5.3 W
IR Range:Up to 30m
Communication :Up the coax
Protocol: Pelco-C(CVBS output), HIKVISION-C(TVI output)
Dimension:Ø 70 mm × 159.8 mm (Ø 2.76″ × 6.29″ )
Weight:Approx. 180 g (0.40 lb.)

Brand

HIKVISION
