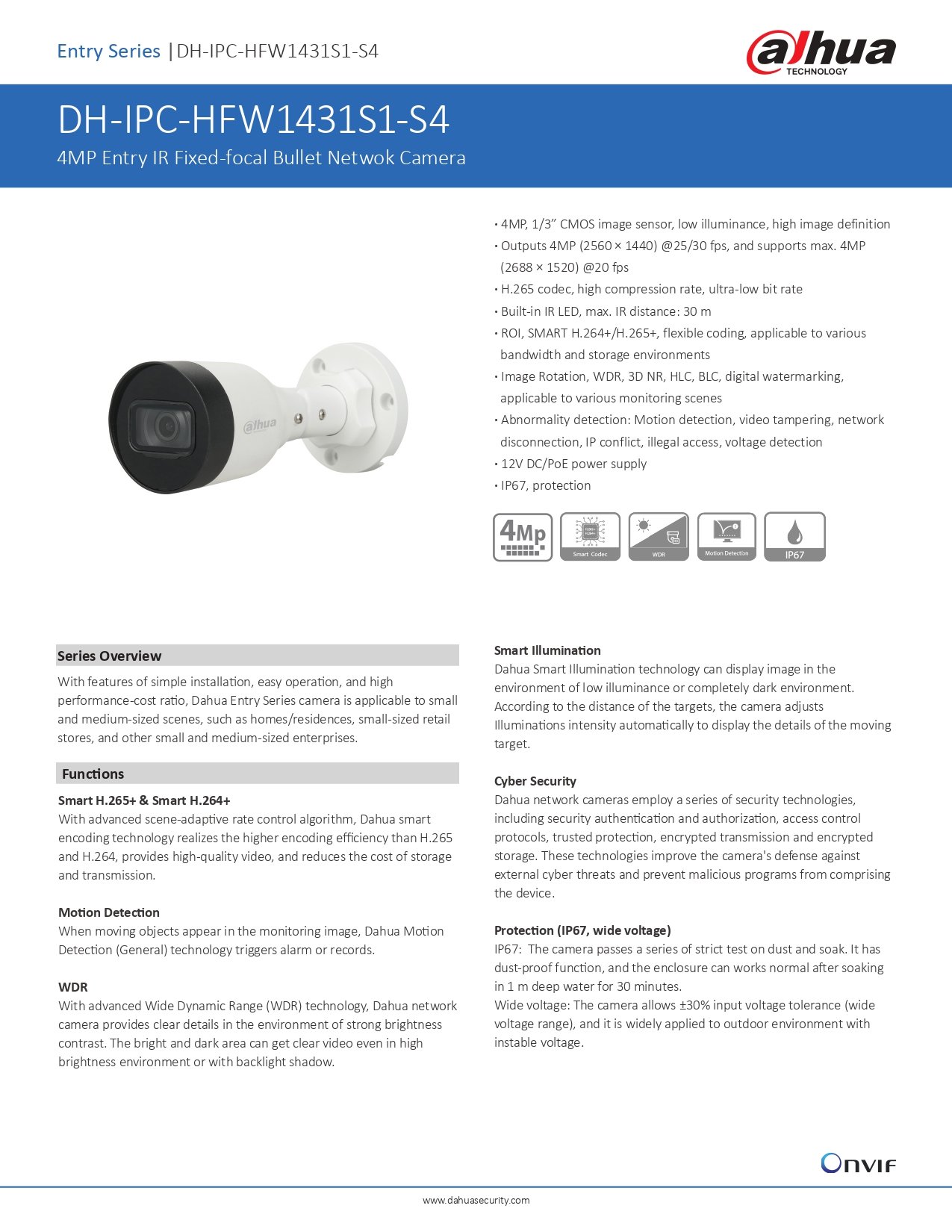

Features & Specifications

4MP, 1/3” CMOS image sensor, low illuminance, high image definition
· Outputs 4MP (2560 × 1440) @25/30 fps, and supports max. 4MP
(2688 × 1520) @20 fps
· H.265 codec, high compression rate, ultra-low bit rate
· Built-in IR LED, max. IR distance: 30 m
· ROI, SMART H.264+/H.265+, flexible coding, applicable to various
bandwidth and storage environments
· Image Rotation, WDR, 3D NR, HLC, BLC, digital watermarking,
applicable to various monitoring scenes
· Abnormality detection: Motion detection, video tampering, network
disconnection, IP conflict, illegal access, voltage detection
· 12V DC/PoE power supply
· IP67, protection


Series Overview
With features of simple installation, easy operation, and high
performance-cost ratio, Dahua Entry Series camera is applicable to small
and medium-sized scenes, such as homes/residences, small-sized retail
stores, and other small and medium-sized enterprises.

Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart
encoding technology realizes the higher encoding efficiency than H.265
and H.264, provides high-quality video, and reduces the cost of storage
and transmission.

Motion Detection
When moving objects appear in the monitoring image, Dahua Motion
Detection (General) technology triggers alarm or records.

With advanced Wide Dynamic Range (WDR) technology, Dahua network
camera provides clear details in the environment of strong brightness
contrast. The bright and dark area can get clear video even in high
brightness environment or with backlight shadow.

Smart Illumination
Dahua Smart Illumination technology can display image in the
environment of low illuminance or completely dark environment.
According to the distance of the targets, the camera adjusts
Illuminations intensity automatically to display the details of the moving
Cyber Security
Dahua network cameras employ a series of security technologies,
including security authentication and authorization, access control
protocols, trusted protection, encrypted transmission and encrypted
storage. These technologies improve the camera’s defense against
external cyber threats and prevent malicious programs from comprising
the device.
