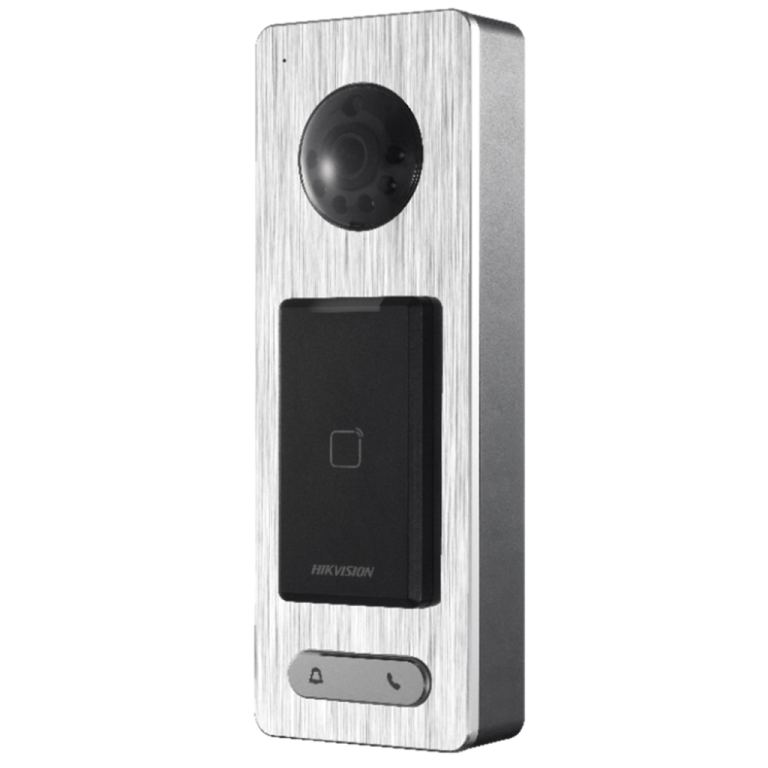

Video Access Control Terminal

Features & Specifications

Video Access Control Terminal

  • Brushed metal surface
  • Communication via TCP/IP and Wi-Fi
  • Supports EHome protocol for public
    network communication
  • Face detection and picture capturing
    function implemented by built-in camera
    (1080P/2MP and IR light, optional)
  • Built-in Micro SD card slot; Supports
    inserting Micro SD card (Max. 128G) and
    saving captured pictures and recorded
    videos to the memory card
  • QR code authentication; Generates QR
    code via iVMS-4200 client software or
    other systems
  • Two way-audio
  • Open door remotely via iVMS-4200
    client software or other systems
  • Max. 50,000 cards No., Max. 200,000 access control event record
  •  Supports Mifare card reading
  • Multiple authentication modes: QR code,
    card, card + password
  • Working as a card reader, and supports
    Wiegand interface and RS-485 interface
    for accessing the controller
  • RS-485 communication for connecting
    external card reader
  • Connects the external secure door
    control unit via RS-485 to avoid the door
    opening when the terminal is destroyed
  • Protection level: IP65
  • Voice prompt for the results of
    authentication by card
  • Tampering detection, unlocking overtime
    alarm, invalid card swiping over times
    alarm, duress card alarm, and so on.
