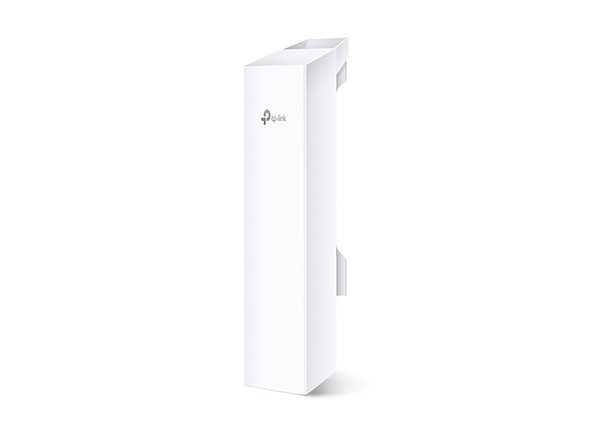

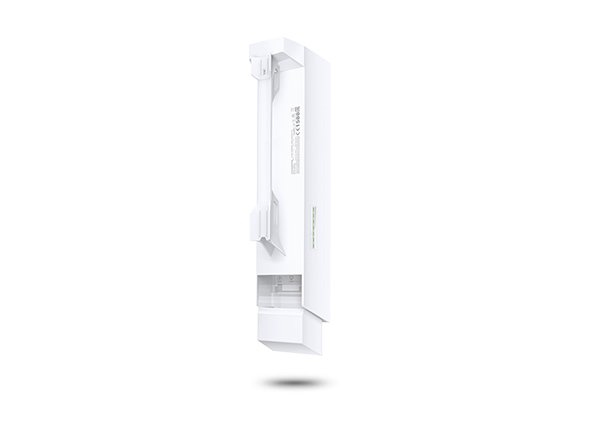

CPE220

TP-LINK 2.4GHz 300Mbps 12dBi Outdoor CPE

Features & Specifications

2.4 GHz 300 Mbps 12 dBi Outdoor CPE

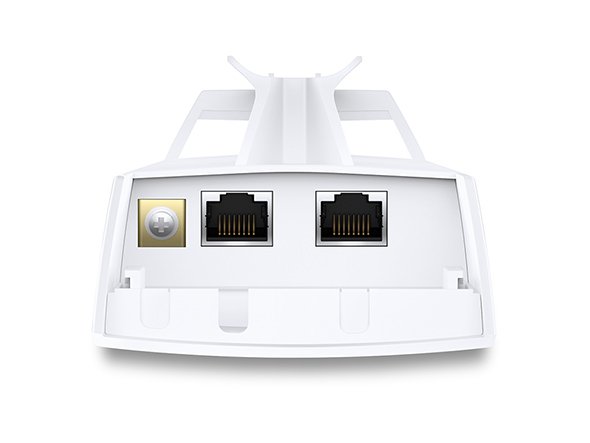

PORT: 1× 10/100 Mbps Shielded Ethernet Port (LAN 0, Passive PoE in); 1 × 10/100 Mbps
Shielded Ethernet Port (LAN 1)
SPEED: 300 Mbps at 2.4 GHz
FEATURE: 12 dBi, 13+ km, IPX5 Weatherproof, Passive PoE, MAXtream TDMA, Centralized
Management, Spectrum Analyzer, AP/Client/AP Router/AP Client Router/Repeater/Bridge mode

Original price was: RM251.00.Current price is: RM219.00.

2.4GHz 300Mbps 12dBi Outdoor CPE

TP-LINK’s 2.4GHz 300Mbps 12dBi Outdoor CPE, the CPE220 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications.  Professional performance, coupled with user-friendly design, makes CPE220 an ideal choice for both business and home users.

Enterprise Hardware

With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE220 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -40℃ (-40℉) to +70 ℃ (158℉).

Advanced Antenna System

Built-in High Gain Dual-Polarized Antenna
Dedicated metal reflector ensures higher gain
and lower noise interferenceV

13km+ Wireless Data Transmission

Specially designed for outdoor uses, ideal for long distance wireless data transmission over 13km+, tested in the field.

TP-LINK MAXtream TDMA Technology

As network scale increases, wireless competition and collisions among CPEs and base stations will be
so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user
experience. To mitigate these effects, the CPE220 uses MAXtream TDMA Technology.

Pharos Control – Centralized Management System

CPE220 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC – Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.

PharOS

User-friendly web-based management system allows professionals to do more specific configurations.

2.4GHz 300Mbps 12dBi Outdoor CPE   CPE220

Built-in 12dBi Dual-polarized
Directional Antenna

AP / Client / AP Router /
AP Client Router (WISP) operation modes

6KV Lightning Protection

Weather Proof Enclosure

15KV ESD Protection

Passive PoE Adapter

Wireless Networking for Elevators

TP-Link offers wireless point to point link delivering up to 300 Mbps throughput. The point to point link provides wireless coverage to the entire shaft, and delivers network to the elevator car, connecting the surveillance cameras or digital signage. So that real time video can be recorded to a DVR without hard wiring coax cable directly from the camera to the recorder.

  • Easy, Flexible Installation
  • Stable Connections at High-Speeds
  • Ideal for Elevator Camera
