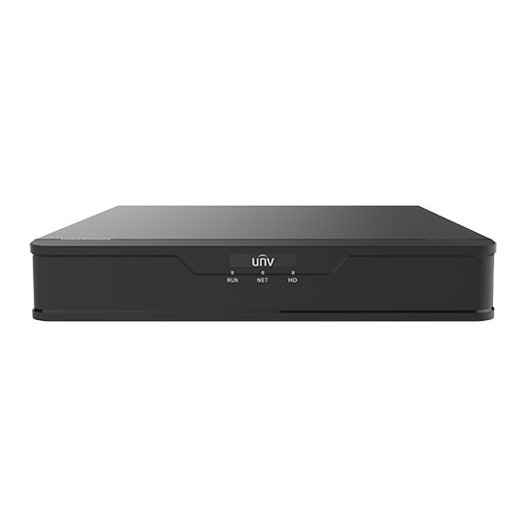

DVR/NVR Specifications

• Video Inputs:
  • 4CH BNC input
  • 2CH IP input (up to 6CH total)
  • Each channel supports up to 4K resolution
• Video Compression: H.265/H.264 formats
• Audio: Supports audio over coaxial
• Storage:
  • 1 SATA slot, supports up to 6TB storage
• Camera Compatibility:
  • Supports TVI, AHD, CVI, CVBS, IP cameras with adaptive access
• Display Outputs:
  • HDMI, VGA, and CVBS simultaneous output
  • HDMI/VGA output at 1080P resolution
• Network Interface: 1 port
• Alarm In/Out: Not applicable
• Bandwidth:
  • Incoming: 48Mbps
  • Outgoing: 60Mbps
• Additional Features:
  • Support for cloud upgrade
